#1 Chamber

*Refinish/bead blast. *Hydro test. *Bottom steel frame is bead blasted and painted.

#2 Chamber Insulation

New fiberglass insulation is securely install around the chamber.

#3 S1,S2 Assembly.

We install brand new valves, coils and check valve.

#5 Back right side view

You can appreciate in this picture the finished product of remanufacturing.

#4 Steam and Water In.

Al new Brass materials are assemble for the Steam and cold water intake.

#9 Side right view

Water Ejector assembly is install with brass unions and copper pipes for easy replacement.

#7 S4,S7, PRV assembly

New S4 and S7 Valves are installed with new coils and PRV is fully rebuilt.

#6 Top view of Intake maniful

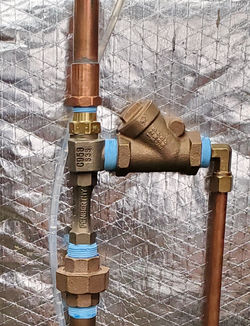

#10 Ejector

Brand new Ejector and check valve are install.

#8 Threaded components

We use first quality Teflon Tape (blue color) to seal all threaded pipe components

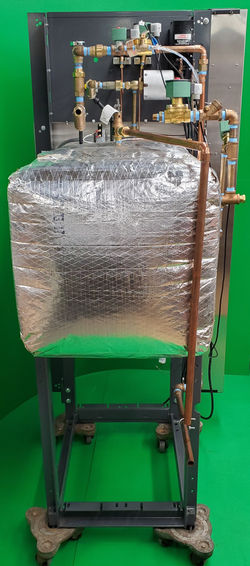

#11 Back view

You can appreciate the workmanship and dedication of remanufacturing

#12 Chamber Steam Trap

In this picture you view the Chamber steam trap, Emergency Chamber steam evacuation valve and the Chamber slow exhaust adjustable valve.

#14 S3 Valve Exhaust assembly

Brand new S3 Valve and all first quality copper pipes.

#13 Jacket Steam Trap

Here you can see the jacket steam trap as part of the exhaust maniful.

#16 Front view

The electronic control panel is mounted.

#18 Door Wheel

A band new door wheel is installed.

#17 Control panel

New knobs and gauges are installed.

#15 Door

All door components are disassembled and rebuilt.
